Cable and Hose Protection
Item No: 04CP905

Registered Design No: 6155497

Trip Avoidance

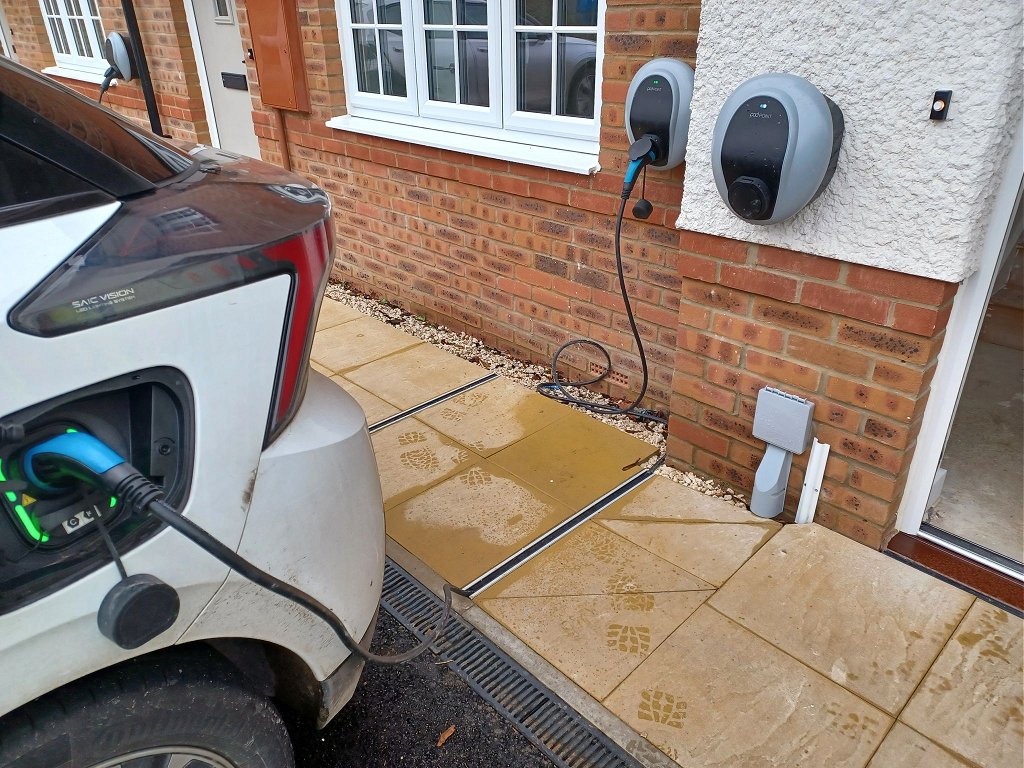

Low profile, Low Immersion, EV Charge Cable Channel or gully.

Provisional Product Description 12/07/2022

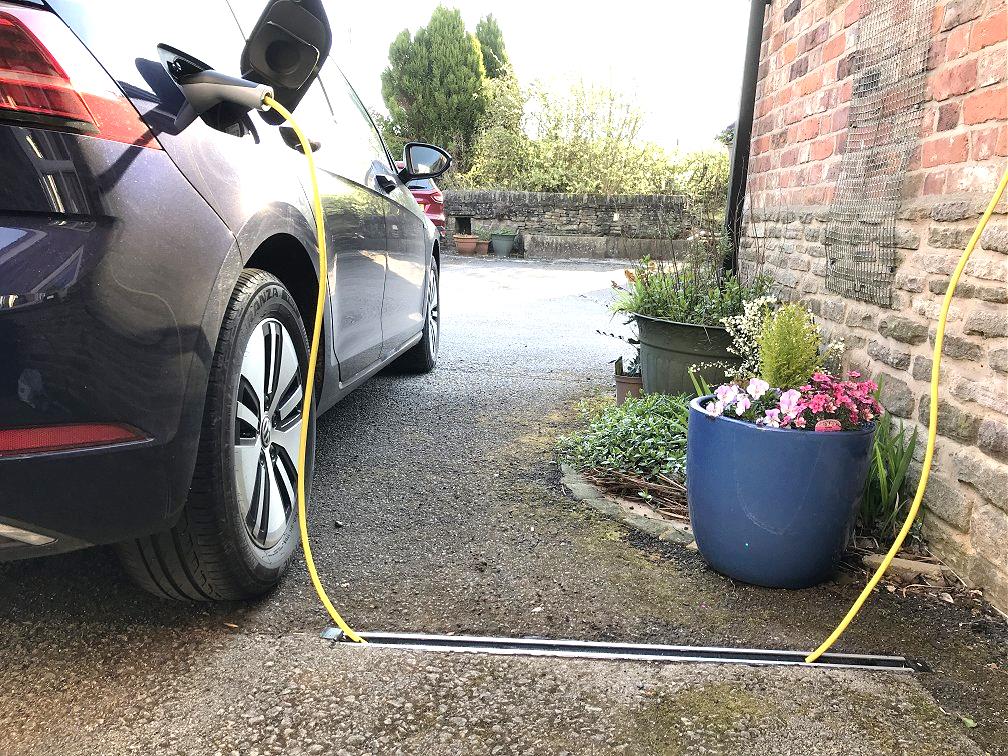

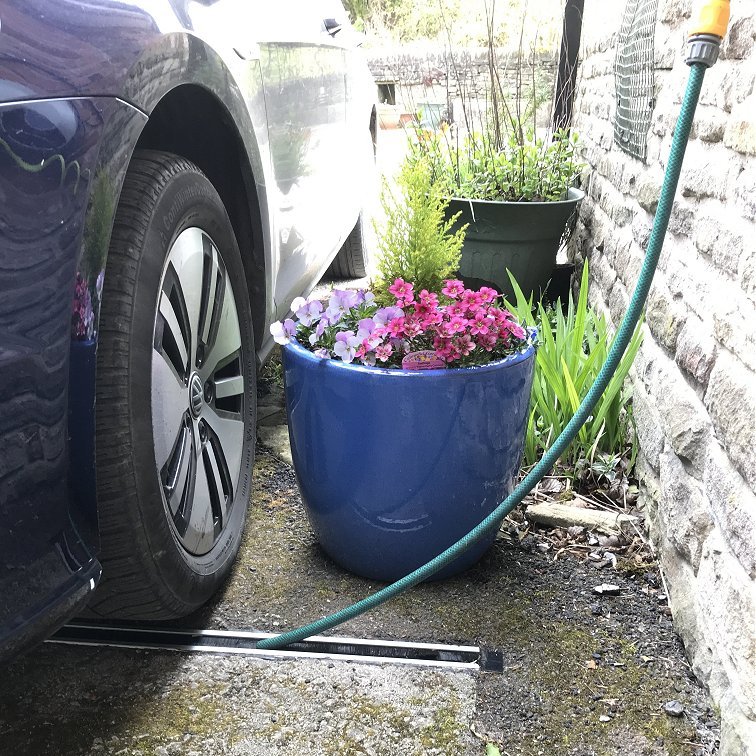

Avoid cable trips, or car traffic puncturing your hosepipe.

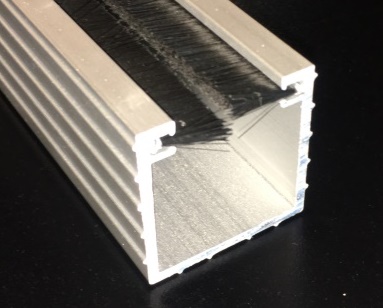

Just push your hose or EV charging cable down into this retainer channel.

The flexible bristles hold it below ground level until you need to pull it out.

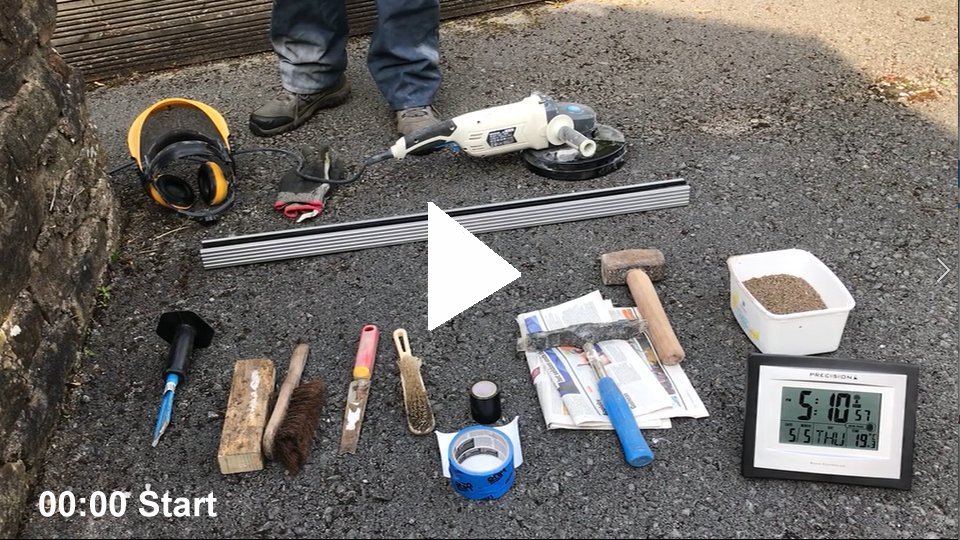

Watch 40 seconds of video:-

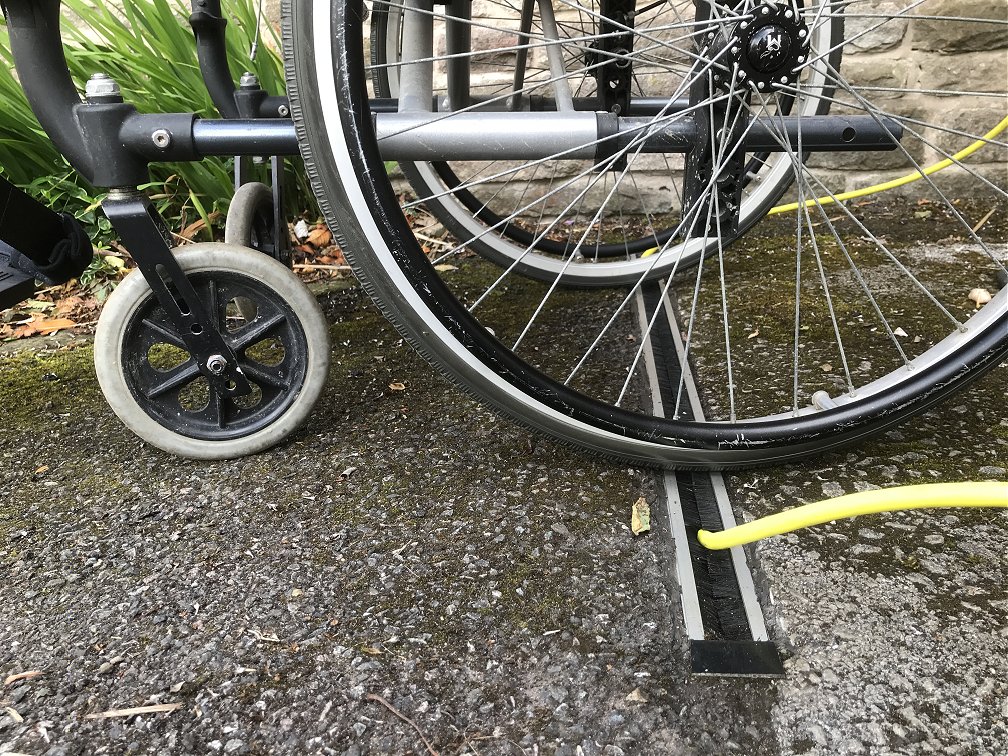

No obstacle to bikes, buggies, or wheelchairs:-

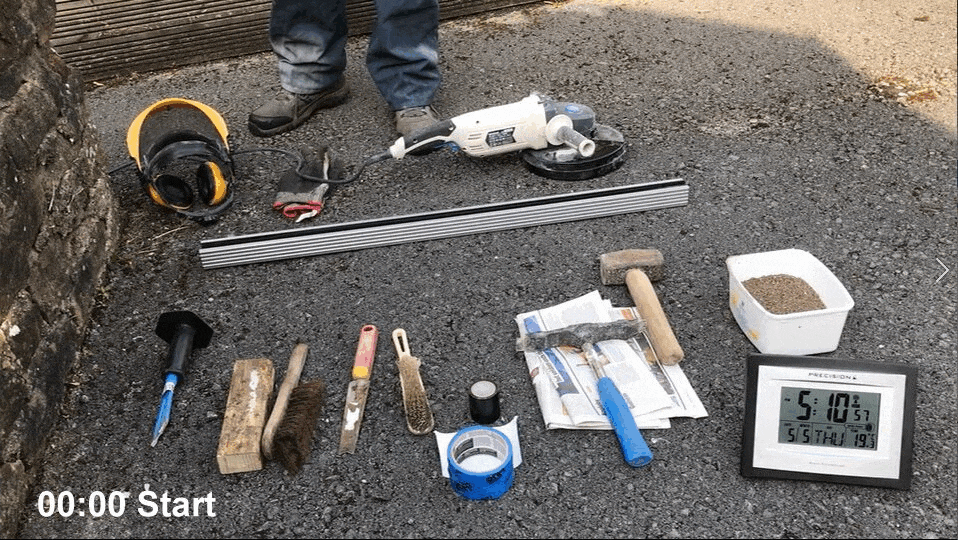

Fast Installation:

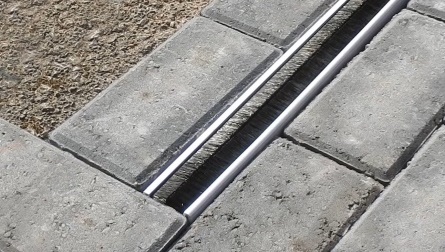

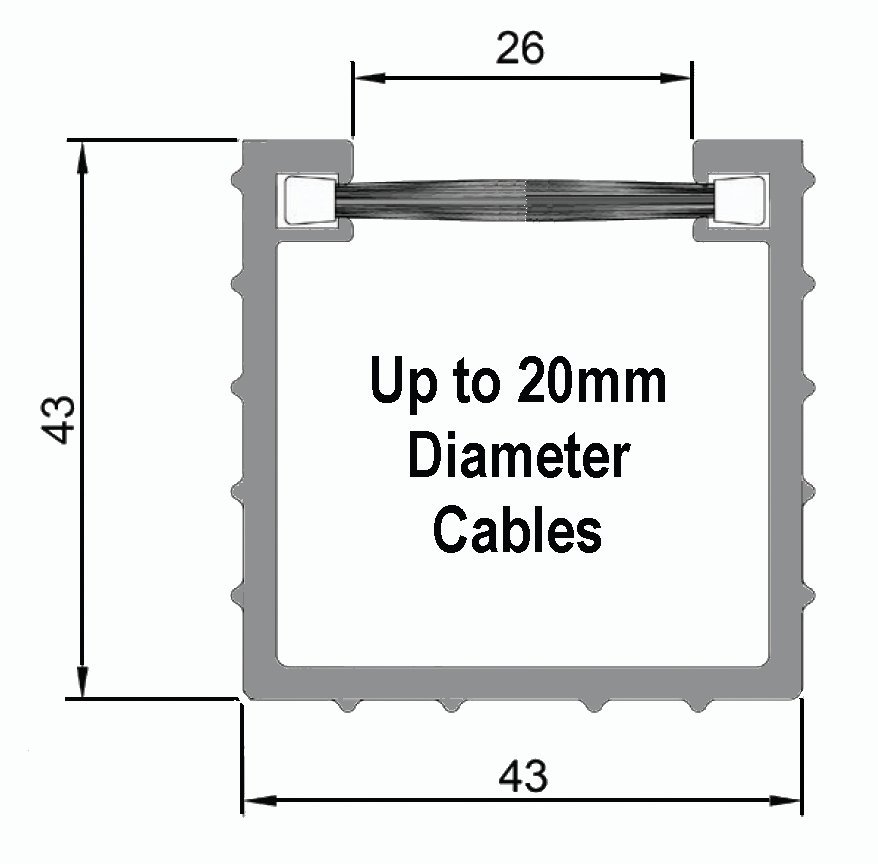

Being only 43mm deep, the channel can easily be incorporated into new paving.









In existing surfaces, cut two 5cm deep grooves
5cm apart and chisel out the infill, -
or crop a 5cm-wide strip
off the edge of paving slabs.

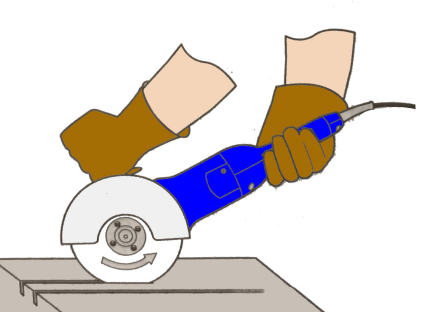

In addition to causing minimal

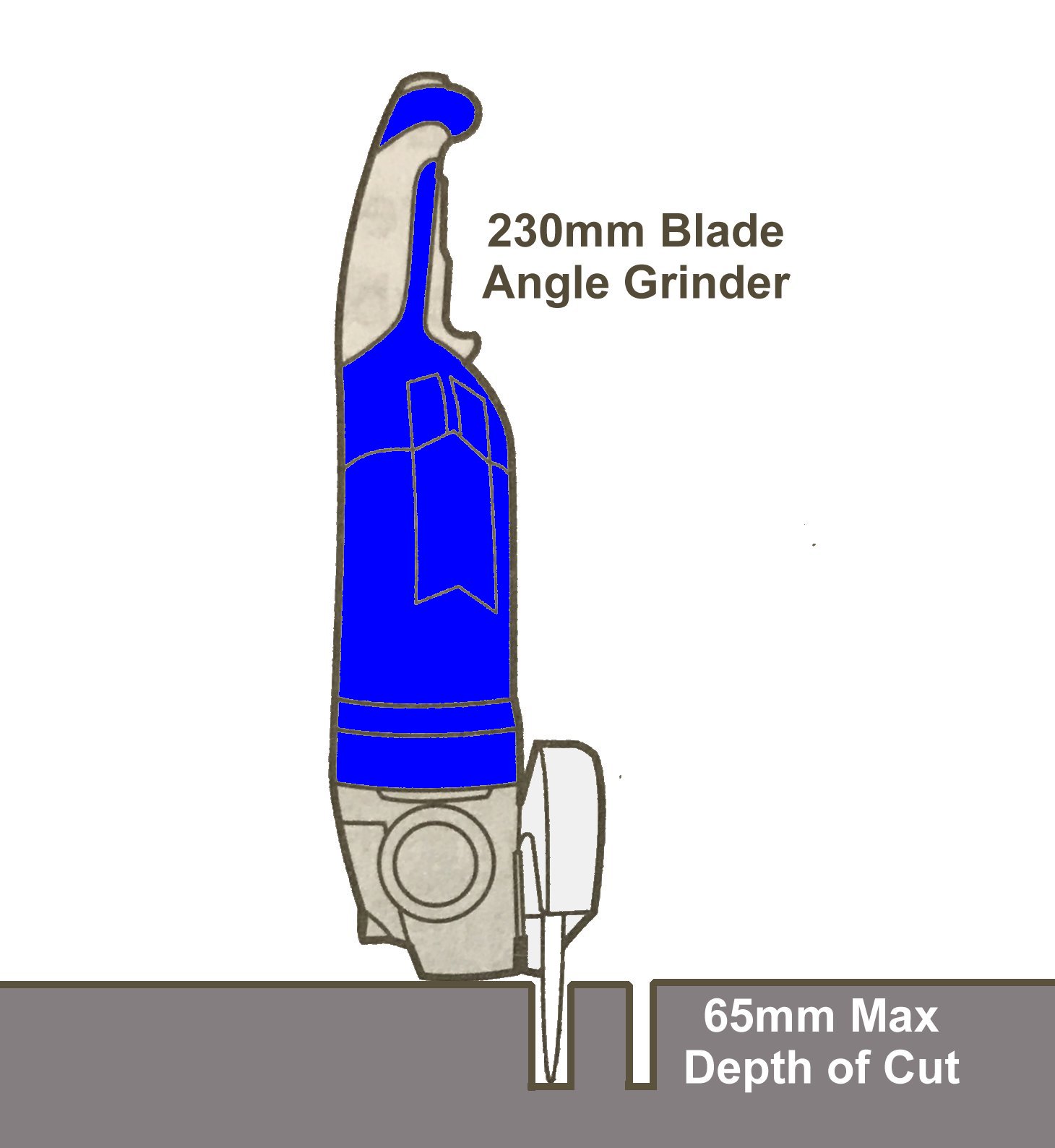

surface disturbance, a 230mm
cutting disc has a maximum cut depth
 of about 65mm,minimising any risk
to underground services.

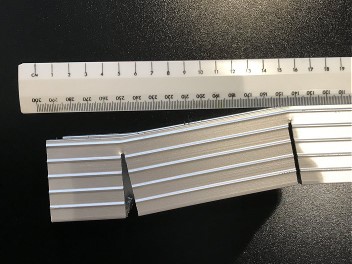

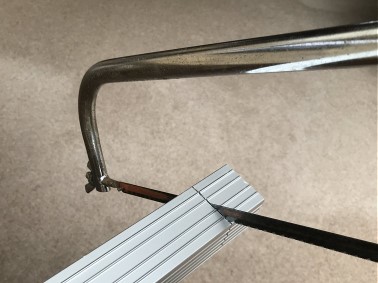

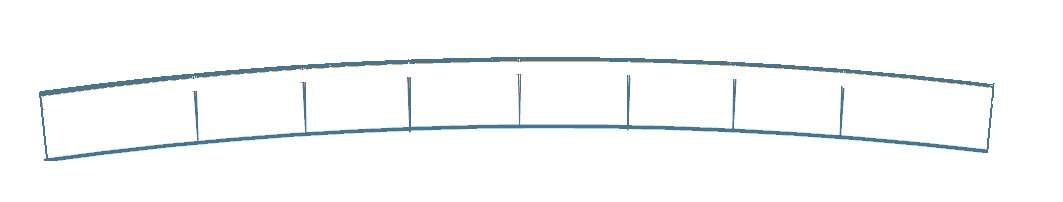

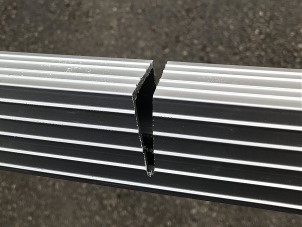

The section can easily be slit and bent to follow the contours of the surface;-





Bond in place with mastic or mortar.


Material:

Bright Anodised Aluminium.

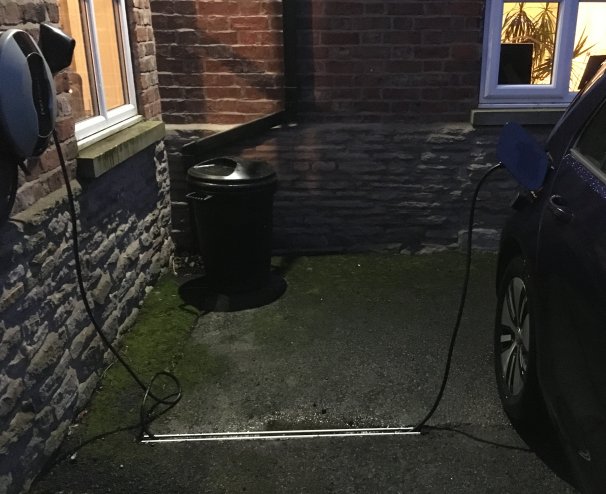

The bright edges make the channel easy to find,
even in poor light.


Dims: 45mm x 45mm x 1, 2, or 3m lengths.
Weight: 1.1kg per metre.




Media Coverage:-

Posted June 29, 2022

https://electricroad.co.uk/
_______

Posted June 15, 2022

https://chargedevs.com
____________

Posted 22 June, 2022


https://macclesfield.nub.news


Where to Buy

One metre lengths available from ev-extras.
www.ev-extras.com



Also available from Low Energy Supermarket:-

or
and also from

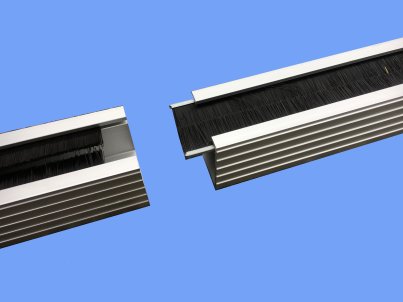

The one metre sections can be joined by offsetting the brushes a little:-

Alternatively, 2 metre and 3 metre lengths, are also available:

Part No: 04CP905.  www.stormguard.co.uk Tel: 01625 613311
